A constraint on the addition of the attributes of a block. More...

#include <constraint.h>

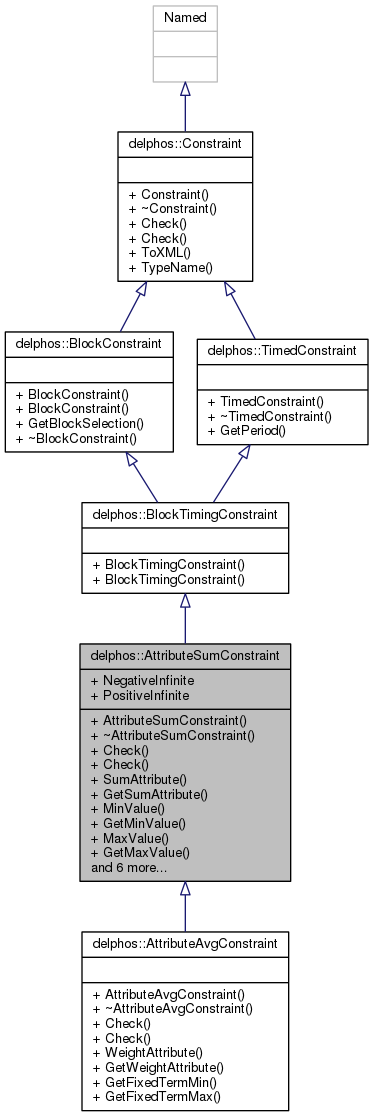

Inheritance diagram for delphos::AttributeSumConstraint:

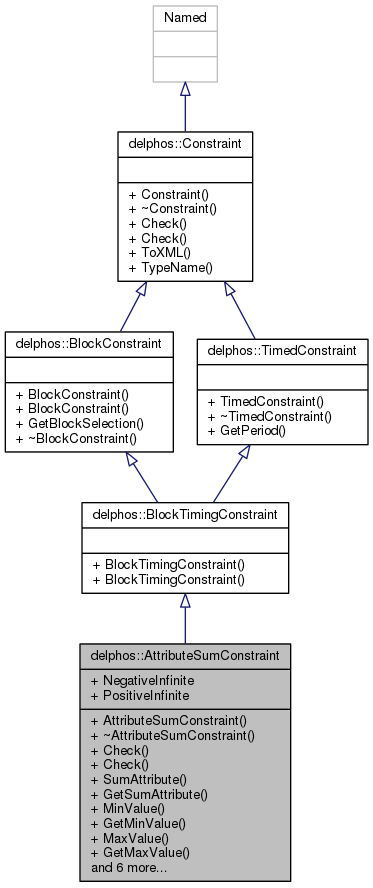

Collaboration diagram for delphos::AttributeSumConstraint:

Public Member Functions
	AttributeSumConstraint (const string &name, const unsigned int &period, const string &attribute, const vector< string > &destinations, const double min_value=NegativeInfinite, const double max_value=PositiveInfinite, delphos::BlockSelection *bs=NULL)
	Creates a new sum constraint. More...

virtual bool	Check (const delphos::Schedule &sch) const
	Checks if the schedule satisfies the constraint. More...

virtual bool	Check (const delphos::FractionalSchedule &sch) const
	Checks if the given fractional schedule satisfies the constraint. More...

const string	SumAttribute () const
	Returns the attribute to be added up and limited. More...

const string	GetSumAttribute () const
	Returns the attribute to be added up and limited. More...

const double	MinValue () const
	Returns the lower limit set by the constraint. Return the lower limit set by the constraint.

const double	GetMinValue () const
	Returns the lower limit set by the constraint. Return the lower limit set by the constraint.

const double	MaxValue () const
	Returns the upper limit set by the constraint. Return the upper limit set by the constraint.

const double	GetMaxValue () const
	Returns the upper limit set by the constraint. Return the upper limit set by the constraint.

const bool	IsLowerBounded () const
	Checks if the lower limit applies or not. More...

const bool	IsUpperBounded () const
	Checks if the upper bound limit applies or not. More...

const unsigned int	NumAffectedDestinations () const
	Returns the number of destinations affected by the constraint. More...

const unsigned int	GetNumAffectedDestinations () const
	Returns the number of destinations affected by the constraint. More...

string	GetAffectedDestination (const unsigned int &i) const
	Returns the name of the i-th destinations affected by the constraint. More...

const vector< string > &	GetAffectedDestinations () const
	Returns the affected destinations.

Public Member Functions inherited from delphos::BlockTimingConstraint
	BlockTimingConstraint (const string &name, const unsigned int &period, delphos::BlockModel &bm)
	Creates a constraint limiting the period . More...

	BlockTimingConstraint (const string &name, const unsigned int &period, delphos::BlockSelection *bs)
	Creates a constraint limiting the period . More...

Public Member Functions inherited from delphos::BlockConstraint
	BlockConstraint (const string &name, delphos::BlockModel &bm)
	Creates a new block selection constraint. More...

	BlockConstraint (const string &name, delphos::BlockSelection *bs)
	Creates a new block selection constraint. More...

delphos::BlockSelection *	GetBlockSelection () const
	Returns the selection of blocks being constrained.

virtual	~BlockConstraint ()
	Destroys a block constraint.

Public Member Functions inherited from delphos::Constraint
	Constraint (const string &name)
	Creates a constraint with given name. More...

virtual	~Constraint ()
	Destructor. More...

virtual string	ToXML (const unsigned int identation_level=0) const
	A XML string describing the constraint. More...

const char *	TypeName () const
	a char string used a identifier in the XML representation of the constraint.

Public Member Functions inherited from delphos::TimedConstraint
	TimedConstraint (const string &name, const unsigned int &period)
	Creates a new timed constraint. More...

virtual	~TimedConstraint ()
	destroys a timed constraint.

const unsigned int	GetPeriod () const
	Returns the time-period that the constraint applies at. More...

Static Public Attributes
static const double	NegativeInfinite = -INFINI
	Useful constant for 'negative infinite'. More...

static const double	PositiveInfinite = +INFINI
	Useful constant for 'positive infinite'. More...

Detailed Description

A constraint on the addition of the attributes of a block.

This constraint allows to limit the overall sum of an attribute for blocks sent to a set of destinations, at a given time-period.

Constructor & Destructor Documentation

delphos::AttributeSumConstraint::AttributeSumConstraint	(	const string &	name,
		const unsigned int &	period,
		const string &	attribute,
		const vector< string > &	destinations,
		const double	min_value = `NegativeInfinite`,
		const double	max_value = `PositiveInfinite`,
		delphos::BlockSelection *	bs = `NULL`
	)

Creates a new sum constraint.

Parameters

name	A name for the constraint.
period	The time-period at which the constraint applies.
attribute	Attribute that will be bounded (its addition).
destinations	The list of destinations affected by the constraint.
min_value	The lower limit to impose on the sum of the attribute.
max_value	The upper limit to impose on the sum of the attribute.
bs	The given block selection to be constrained.

Member Function Documentation

bool delphos::AttributeSumConstraint::Check ( const delphos::Schedule & sch ) const

virtual

Checks if the schedule satisfies the constraint.

Parameters

sch	The schedule to be checked.

Returns true if the schedule satisfies the constraint, and false of not.

Reimplemented from delphos::Constraint.

Reimplemented in delphos::AttributeAvgConstraint.

bool delphos::AttributeSumConstraint::Check ( const delphos::FractionalSchedule & sch ) const

virtual

Checks if the given fractional schedule satisfies the constraint.

Parameters

fsch	The fractional schedule to be checked.

This method checks if the given schedule satisfies the constraint (returning true) or not (return false).

Reimplemented from delphos::Constraint.

Reimplemented in delphos::AttributeAvgConstraint.

string delphos::AttributeSumConstraint::GetAffectedDestination ( const unsigned int & i ) const

Returns the name of the i-th destinations affected by the constraint.

Parameters

i	The given i-th position.

Return the name of the i-th destinations affected by the constraint.

const unsigned int delphos::AttributeSumConstraint::GetNumAffectedDestinations ( ) const

Returns the number of destinations affected by the constraint.

Return the number of destinations affected by the constraint.

const string delphos::AttributeSumConstraint::GetSumAttribute ( ) const

Returns the attribute to be added up and limited.

Return the attribute to be added up and limited.

const bool delphos::AttributeSumConstraint::IsLowerBounded ( ) const

Checks if the lower limit applies or not.

Checks if the lower limit is set to "-Infinity" or not. Return False if so.

const bool delphos::AttributeSumConstraint::IsUpperBounded ( ) const

Checks if the upper bound limit applies or not.

Checks is the upper bound is set to "+Infinite" or not. Return False if so.

const unsigned int delphos::AttributeSumConstraint::NumAffectedDestinations ( ) const

Returns the number of destinations affected by the constraint.

Return the number of destinations affected by the constraint. Deprecated.

const string delphos::AttributeSumConstraint::SumAttribute ( ) const

Returns the attribute to be added up and limited.

Return the attribute to be added up and limited. Deprecated.

Field Documentation

const double delphos::AttributeSumConstraint::NegativeInfinite = -INFINI

static

Useful constant for 'negative infinite'.

If used as a lower limit in the sum constraint, then no actual lower bound is imposed.

const double delphos::AttributeSumConstraint::PositiveInfinite = +INFINI

static

Useful constant for 'positive infinite'.

If used as a upper limit in the sum constraint, then no actual upper bound is imposed.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.cpp
