A base class for constraints that apply to subsets of blocks. More...

#include <constraint.h>

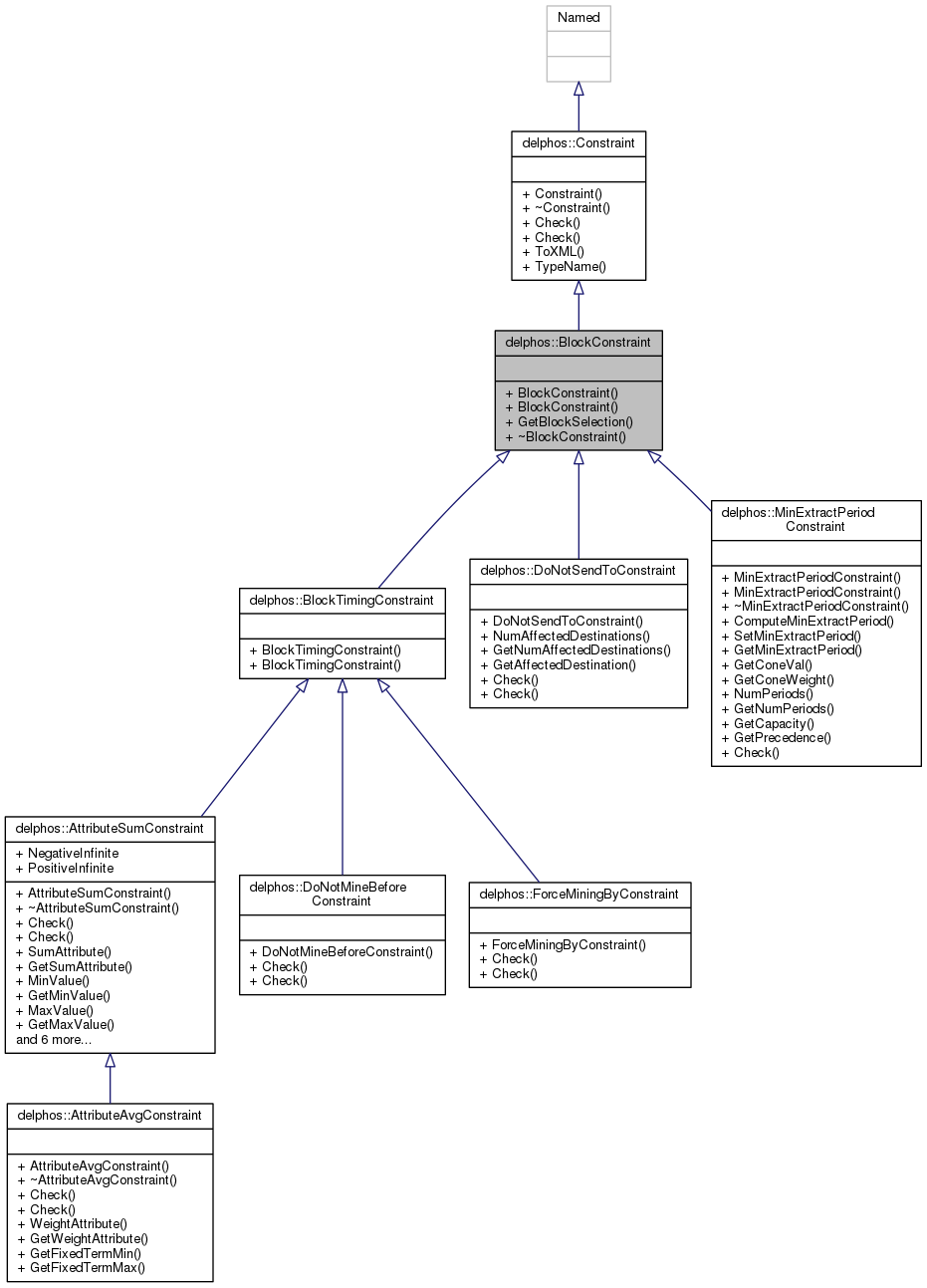

Inheritance diagram for delphos::BlockConstraint:

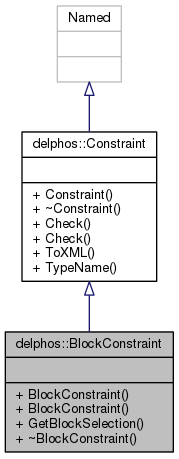

Collaboration diagram for delphos::BlockConstraint:

Public Member Functions
	BlockConstraint (const string &name, delphos::BlockModel &bm)
	Creates a new block selection constraint. More...

	BlockConstraint (const string &name, delphos::BlockSelection *bs)
	Creates a new block selection constraint. More...

delphos::BlockSelection *	GetBlockSelection () const
	Returns the selection of blocks being constrained.

virtual	~BlockConstraint ()
	Destroys a block constraint.

Public Member Functions inherited from delphos::Constraint
	Constraint (const string &name)
	Creates a constraint with given name. More...

virtual	~Constraint ()
	Destructor. More...

virtual bool	Check (const delphos::Schedule &sch) const
	Checks if the given schedule satisfies the constraint. More...

virtual bool	Check (const delphos::FractionalSchedule &fsch) const
	Checks if the given fractional schedule satisfies the constraint. More...

virtual string	ToXML (const unsigned int identation_level=0) const
	A XML string describing the constraint. More...

const char *	TypeName () const
	a char string used a identifier in the XML representation of the constraint.

Detailed Description

A base class for constraints that apply to subsets of blocks.

This class defines elementary data for constraints that apply only to a subset of the blocks in a blockmodel.

Constructor & Destructor Documentation

delphos::BlockConstraint::BlockConstraint	(	const string &	name,
		delphos::BlockModel &	bm
	)

Creates a new block selection constraint.

Parameters

name	A name for the constraint.
bm	The block model to be constrained.

If this constructor is used, no block is constrained.

delphos::BlockConstraint::BlockConstraint	(	const string &	name,
		delphos::BlockSelection *	bs
	)

Creates a new block selection constraint.

Parameters

name	of the constraint.
bs	The selection of blocks to be constrained.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.cpp
