delphos::BlockTimingConstraint Class Reference

Defines a constraint that limits processing periods or destinations for blocks. More...

#include <constraint.h>

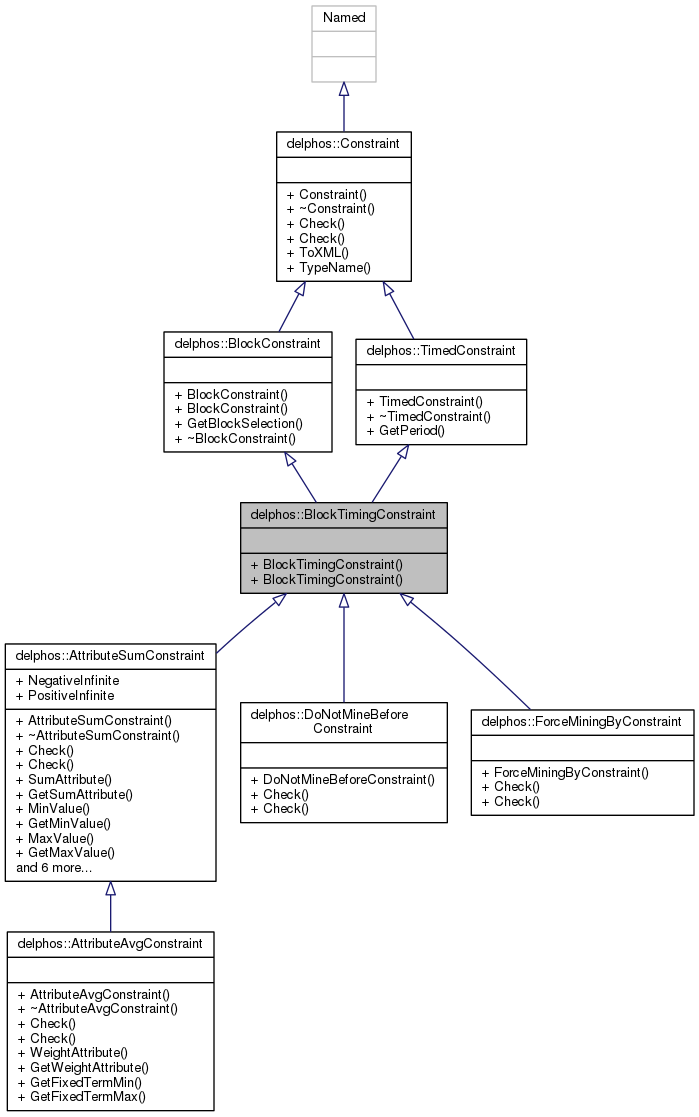

Inheritance diagram for delphos::BlockTimingConstraint:

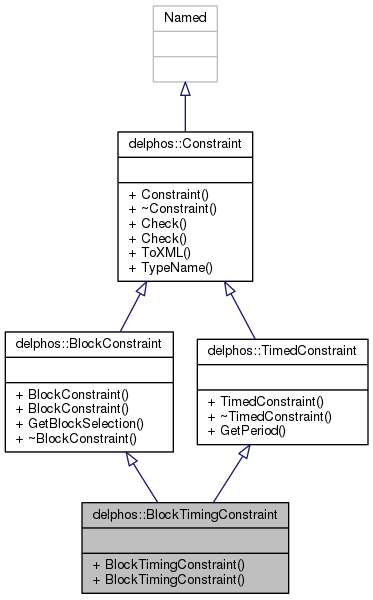

Collaboration diagram for delphos::BlockTimingConstraint:

Public Member Functions
	BlockTimingConstraint (const string &name, const unsigned int &period, delphos::BlockModel &bm)
	Creates a constraint limiting the period . More...
	BlockTimingConstraint (const string &name, const unsigned int &period, delphos::BlockSelection *bs)
	Creates a constraint limiting the period . More...
Public Member Functions inherited from delphos::BlockConstraint
	BlockConstraint (const string &name, delphos::BlockModel &bm)
	Creates a new block selection constraint. More...
	BlockConstraint (const string &name, delphos::BlockSelection *bs)
	Creates a new block selection constraint. More...
delphos::BlockSelection *	GetBlockSelection () const
	Returns the selection of blocks being constrained.
virtual	~BlockConstraint ()
	Destroys a block constraint.
Public Member Functions inherited from delphos::Constraint
	Constraint (const string &name)
	Creates a constraint with given name. More...
virtual	~Constraint ()
	Destructor. More...
virtual bool	Check (const delphos::Schedule &sch) const
	Checks if the given schedule satisfies the constraint. More...
virtual bool	Check (const delphos::FractionalSchedule &fsch) const
	Checks if the given fractional schedule satisfies the constraint. More...
virtual string	ToXML (const unsigned int identation_level=0) const
	A XML string describing the constraint. More...
const char *	TypeName () const
	a char string used a identifier in the XML representation of the constraint.
Public Member Functions inherited from delphos::TimedConstraint
	TimedConstraint (const string &name, const unsigned int &period)
	Creates a new timed constraint. More...
virtual	~TimedConstraint ()
	destroys a timed constraint.
const unsigned int	GetPeriod () const
	Returns the time-period that the constraint applies at. More...

Detailed Description

Defines a constraint that limits processing periods or destinations for blocks.

Constructor & Destructor Documentation

delphos::BlockTimingConstraint::BlockTimingConstraint	(	const string &	name,
		const unsigned int &	period,
		delphos::BlockModel &	bm
	)

Creates a constraint limiting the period .

Parameters

name	The name of the constraint.
period	Period by which the block should be already processed.
bm	The given block model to be constrained. If this constructor is used, no block is constrained.

delphos::BlockTimingConstraint::BlockTimingConstraint	(	const string &	name,
		const unsigned int &	period,
		delphos::BlockSelection *	bs
	)

Creates a constraint limiting the period .

Parameters

name	The name of the constraint.
period	Period by which the block should be already processed.
bs	The selection of blocks to be constrained.

Blocks are constrained.

---

The documentation for this class was generated from the following files:

• /home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.h
• /home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.cpp
