Class that defines a twos phase Reblocking heuristic that solve a scheduling instance. First phase is a topological aggregation. The second phase is a topoligcal desaggregation that permit to obtain a feasible solution to original problem. This implementation of the heuristic is not working for a model that got multi fractional destination variables. If the scheduling instance has got the PCPSP flag on, an exception is thrown. This implementation of the heuristic is working only for a simple slope precedence. RampPrecedenceConstaint, sinking constraints, GeometricConstraint and BlockSelectionPrecedenceConstraint not implemented. Use of BlockSelection not null in all Constraints not implemented. More...

#include <aggheuristics.h>

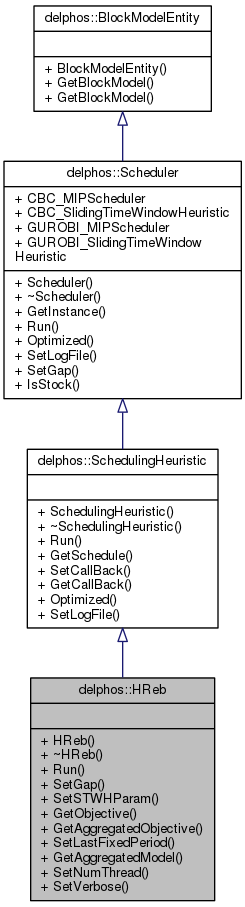

Inheritance diagram for delphos::HReb:

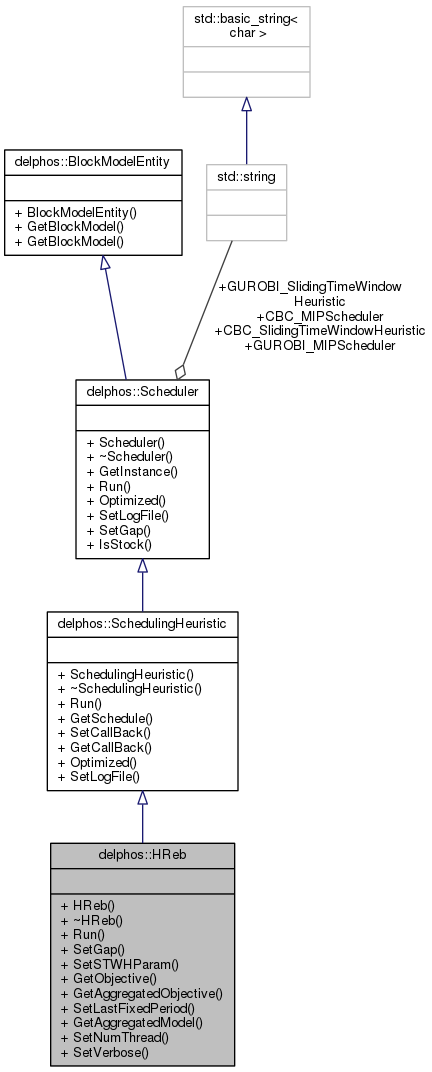

Collaboration diagram for delphos::HReb:

Public Member Functions
	HReb (delphos::SchedulingInstance &si, const double &slope_ang, const unsigned int &nblevels, const string &agg_sched_name=Scheduler::GUROBI_SlidingTimeWindowHeuristic, const string &desagg_sched_name=Scheduler::GUROBI_SlidingTimeWindowHeuristic, const double &rx=0.0, const double &ry=0.0, const double &rz=0.0)
	Creates a twos phase Reblocking heuristic that solve a scheduling instance. More...

virtual	~HReb ()
	The destructor.

bool	Run ()
	Runs the heuristic.

void	SetGap (const float &gap)
	Set the gap of the sub-problems. More...

void	SetSTWHParam (const unsigned int &window_size, const unsigned int &sub_window_size, const unsigned int &step, const bool &backward=true)
	Set the Sliding time window heuristic parameter. More...

double	GetObjective ()
	Returns the objective value.

double	GetAggregatedObjective ()
	Returns the objective value of the Aggregated model.

void	SetLastFixedPeriod (const unsigned int &lastperiod)
	Set the last fixed period. More...

delphos::BlockModel &	GetAggregatedModel ()
	Returns the aggregated block model.

void	SetNumThread (const unsigned int &nthread)
	Set the number of threads used for the optimization of each sub problem.

void	SetVerbose ()
	Set the verbose mode on.

Public Member Functions inherited from delphos::SchedulingHeuristic
	SchedulingHeuristic (SchedulingInstance &si)
	Creates a heuristic with given scheduling instance. More...

virtual	~SchedulingHeuristic ()
	The destructor.

const Schedule &	GetSchedule ()
	Returns the result schedule.

void	SetCallBack (delphos::CallBackPtr fp)
	Set a time advance user callback. More...

delphos::CallBackPtr	GetCallBack ()
	Returns the call back if it exists.

const bool	Optimized ()
	Returns true only if the MIP have been succesfully optimized.

void	SetLogFile (const string &name)
	Set the use of the log with given file name. More...

Public Member Functions inherited from delphos::Scheduler
	Scheduler (delphos::SchedulingInstance &si)
	Creates a new scheduler. More...

virtual	~Scheduler ()
	The destructor.

delphos::SchedulingInstance &	GetInstance ()
	Returns the associated scheduling instance.

const bool	IsStock ()
	Returns true only if the inner scheduling instance has stoks.

Public Member Functions inherited from delphos::BlockModelEntity
	BlockModelEntity (delphos::BlockModel &bm)
	Creates a new block instance associated to a given block model. More...

delphos::BlockModel &	GetBlockModel ()
	Retrieves the block model to which the entity is associated. More...

const delphos::BlockModel &	GetBlockModel () const
	Retrieves the block model to which the entity is associated. More...

Additional Inherited Members
Static Public Attributes inherited from delphos::Scheduler
static const string	CBC_MIPScheduler =string("CBC_MIPScheduler")
	Name of the CBC MIP scheduler.

static const string	CBC_SlidingTimeWindowHeuristic =string("CBC_SlidingTimeWindowHeuristic")
	Name of the CBC implemtation of the sliding time window heuristic.

static const string	GUROBI_MIPScheduler =string("GUROBI_MIPScheduler")
	Name of the gurobi MIP scheduler.

static const string	GUROBI_SlidingTimeWindowHeuristic =string("GUROBI_SlidingTimeWindowHeuristic")
	Name of the gurobi implemtation of the sliding time window heuristic.

Detailed Description

Class that defines a twos phase Reblocking heuristic that solve a scheduling instance. First phase is a topological aggregation. The second phase is a topoligcal desaggregation that permit to obtain a feasible solution to original problem. This implementation of the heuristic is not working for a model that got multi fractional destination variables. If the scheduling instance has got the PCPSP flag on, an exception is thrown. This implementation of the heuristic is working only for a simple slope precedence. RampPrecedenceConstaint, sinking constraints, GeometricConstraint and BlockSelectionPrecedenceConstraint not implemented. Use of BlockSelection not null in all Constraints not implemented.

Constructor & Destructor Documentation

delphos::HReb::HReb	(	delphos::SchedulingInstance &	si,
		const double &	slope_ang,
		const unsigned int &	nblevels,
		const string &	agg_sched_name = `Scheduler::GUROBI_SlidingTimeWindowHeuristic`,
		const string &	desagg_sched_name = `Scheduler::GUROBI_SlidingTimeWindowHeuristic`,
		const double &	rx = `0.0`,
		const double &	ry = `0.0`,
		const double &	rz = `0.0`
	)

Creates a twos phase Reblocking heuristic that solve a scheduling instance.

Parameters

si	The scheduling instance to be solved.
slope_ang	The slope angle of the precedence.
nblevels	Number of benches to consider as limit for precedences.
agg_sched_name	The name of the scheduler used for the aggregation phase.
desagg_sched_name	The name of the scheduler used for the desaggregation phase.
rx	The block dimensions in the X axis of aggregated block model.
ry	The block dimensions in the Y axis of aggregated block model.
rz	The block dimensions in the Z axis of aggregated block model. This implementation of the heuristic is not working for a model that got multi fractional destination variables. If the scheduling instance has got the PCPSP flag on, an exception is thrown. GeometricConstraint and BlockSelectionPrecedenceConstraint not implemented. Use of BlockSelection not null in Constraints not implemented.

Member Function Documentation

void delphos::HReb::SetGap ( const float & gap )

virtual

Set the gap of the sub-problems.

Parameters

gap	The desired realtive integer gap of the sub problems.

Reimplemented from delphos::Scheduler.

void delphos::HReb::SetLastFixedPeriod ( const unsigned int & lastperiod )

Set the last fixed period.

Parameters

lastperiod The last period to be fixed.

void delphos::HReb::SetSTWHParam	(	const unsigned int &	window_size,
		const unsigned int &	sub_window_size,
		const unsigned int &	step,
		const bool &	backward = `true`
	)

Set the Sliding time window heuristic parameter.

Parameters

window_size	The window size.
sub_window_size	The sub window size.
step	The step.
backward	The flag that defines for which stage the parameters applies.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/heuristics/private_heuristics/aggheuristics.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/heuristics/private_heuristics/aggheuristics.cpp
