Defines a scheduling instance to be solved. More...

#include <instance.h>

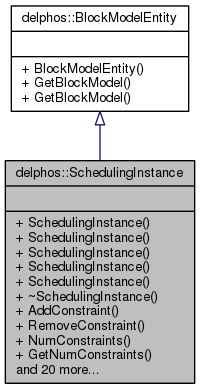

Inheritance diagram for delphos::SchedulingInstance:

Collaboration diagram for delphos::SchedulingInstance:

Public Member Functions
	SchedulingInstance (const delphos::BlockSelection &bs, const unsigned int &horizon, const double discount_rate=0.0, const bool &is_pcpsp=false)
	Creates a new scheduler instance on a given instance, horizon and discount rate. More...

	SchedulingInstance (delphos::BlockModel &bm, const unsigned int &horizon, const string &name_attr, const double discount_rate=0.0, const bool &is_pcpsp=false)
	Creates a new scheduler instance on a given instance, horizon and discount rate. More...

	SchedulingInstance (delphos::SchedulingInstance &other)
	Copy constructor. More...

	SchedulingInstance (delphos::BlockModel &bm, const char *ml_file_name, const bool &is_pcpsp=false)
	Construct instance from cpit or pcpsp MineLib file . More...

	SchedulingInstance (delphos::BlockModel &bm, const unsigned int &horizon, const double discount_rate=0.0, const bool &is_pcpsp=false)
	Creates a new scheduler instance on a given instance, horizon and discount rate. More...

virtual	~SchedulingInstance ()
	Destructor.

void	AddConstraint (delphos::Constraint *ctr)
	Adds an additional constraint to the scheduling instance. More...

bool	RemoveConstraint (const unsigned int &index)
	Removes the ith constraint from the instance. More...

const unsigned int	NumConstraints () const
	Returns the number of constraints already included in the instance. Deprecated.

const unsigned int	GetNumConstraints () const
	Returns the number of constraints already included in the instance.

const delphos::Constraint &	GetConstraint (const unsigned int &index) const
	Returns the i-th constraint already in the model. More...

void	AddDestination (const Destination &dest)
	Adds an additional destination to the scheduling instance. More...

void	AddDestination (const string &destname, const string &destvalueattrname)
	Adds an additional destination to the scheduling instance. More...

delphos::DestinationList &	Destinations ()
	returns the list of destinations in the instance. Deprecated.

delphos::DestinationList &	GetDestinations ()
	returns the list of destinations in the instance.

void	AddStock (const Stock &stock)
	Adds an additional stock to the scheduling instance. More...

void	AddStock (const string &stock_name, const string &tname, const double &tonnage)
	Adds an additional stock to the scheduling instance. More...

delphos::StockList &	Stocks ()
	returns the stocks defined in the instance.

delphos::StockList &	GetStocks ()
	returns the stocks defined in the instance.

const bool	IsStock ()
	returns true only if there is stock.

void	SetFixedDiscountRate (const double discount_rate)
	(Re-)sets a discount rate that is fixed over the time-periods. More...

double	GetFixedDiscountRate () const
	Returns the Fixed Discount rate.

void	SetUpdateFactor (const unsigned int period, const double factor)
	Sets a specific update factor for a specific time-period. More...

const double	GetUpdateFactor (const unsigned int period) const
	Retrieves the current discount rate for an specific time-period.

const unsigned int	Horizon () const
	returns the time horizon of the instance. Deprecated.

const unsigned int	GetHorizon () const
	returns the time horizon of the instance.

const delphos::BlockSelection &	GetBlockSelection () const
	returns the block selection affected to the instance.

virtual void	Report ()
	reports the informations about the instance.

delphos::SchedulingInstance *	AggregateTime (const unsigned int &startperiod, const std::vector< int > &period_unit)
	returns a new time aggregated sheduling instance. More...

bool	IsPCPSP () const
	returns true only if it is a PCPSP instance.

Public Member Functions inherited from delphos::BlockModelEntity
	BlockModelEntity (delphos::BlockModel &bm)
	Creates a new block instance associated to a given block model. More...

delphos::BlockModel &	GetBlockModel ()
	Retrieves the block model to which the entity is associated. More...

const delphos::BlockModel &	GetBlockModel () const
	Retrieves the block model to which the entity is associated. More...

Detailed Description

Defines a scheduling instance to be solved.

A scheduling instance is a problem in which blocks need to be scheduled for extraction over a number of time periods and several different constraints.

This class abstracts the problem considering multiple possible destinations, pre-existing stocks and generic constraints.

Constructor & Destructor Documentation

delphos::SchedulingInstance::SchedulingInstance	(	const delphos::BlockSelection &	bs,
		const unsigned int &	horizon,
		const double	discount_rate = `0.0`,
		const bool &	is_pcpsp = `false`
	)

Creates a new scheduler instance on a given instance, horizon and discount rate.

Parameters

bs	The given block selection to be scheduled.
horizon	The number of periods over which to perform the scheduling.
discount_rate	The discount rate to apply at the end of each time-period.
is_pcpsp	The flag that determines if the scheduling instance is used to define a PCPSP model or a full integer model.

These are the minimal elements to specify a scheduling instance.

Different possible process (or "destinations") are defined later, as well as the stocks and additional constraints.

While this constructor allows to specify a constant discount rate, there are also specific method to specify different discount rates per time-period. Note that there is a difference with MineLib in the definition of the discount factor. In case of a discount rate > 0 , for us, for all periods, the discount factor < 1.

delphos::SchedulingInstance::SchedulingInstance	(	delphos::BlockModel &	bm,
		const unsigned int &	horizon,
		const string &	name_attr,
		const double	discount_rate = `0.0`,
		const bool &	is_pcpsp = `false`
	)

Creates a new scheduler instance on a given instance, horizon and discount rate.

Parameters

bm	The block model to be scheduled.
horizon	The number of periods over which to perform the scheduling.
name_attr	The name of the attribute that be used to determine a block selection.
discount_rate	The discount rate to apply at the end of each time-period.
is_pcpsp	The flag that determines if the scheduling instance is used to define a PCPSP model or a full integer model.

The attribute name is used to create a block selection consisting of blocks such that a certain block value corresponding to the attribute name is different from zero. Note that there is a difference with MineLib in the definition of the discount factor. In case of a discount rate > 0 , for us, for all periods, the discount factor < 1.

delphos::SchedulingInstance::SchedulingInstance ( delphos::SchedulingInstance & other )

Copy constructor.

Parameters

other Other scheduling instance to be copied.

delphos::SchedulingInstance::SchedulingInstance	(	delphos::BlockModel &	bm,
		const char *	ml_file_name,
		const bool &	is_pcpsp = `false`
	)

Construct instance from cpit or pcpsp MineLib file .

Parameters

bm	The block model to be scheduled.
ml_file_name	The MineLib filename from which the instance will be constructed.
is_pcpsp	The flag that determines if the scheduling instance is used to define a PCPSP model or a full integer model. By default, when loading a pcpsp file, the full integer model is defined in the scheduling instance, PCPSP flag is off. To solve PCPSP model, is_pcpsp parameter have to be set to true. Blending constraints are not loaded this way. Blending constraints have to be added manually. Note that there is a difference with MineLib in the definition of the discount factor. In case of a discount rate > 0 , for us, for all periods, the discount factor < 1.

delphos::SchedulingInstance::SchedulingInstance	(	delphos::BlockModel &	bm,
		const unsigned int &	horizon,
		const double	discount_rate = `0.0`,
		const bool &	is_pcpsp = `false`
	)

Creates a new scheduler instance on a given instance, horizon and discount rate.

Parameters

bm	The block model to be scheduled.
horizon	The number of periods over which to perform the scheduling.
discount_rate	The discount rate to apply at the end of each time-period.
is_pcpsp	The flag that determines if the scheduling instance is used to define a PCPSP model or a full integer model.

These are the minimal elements to specify a scheduling instance.

Different possible process (or "destinations") are defined later, as well as the stocks and additional constraints.

While this constructor allows to specify a constant discount rate, there are also specific method to specify different discount rates per time-period. Note that there is a difference with MineLib in the definition of the discount factor. In case of a discount rate > 0 , for us, for all periods, the discount factor < 1.

Member Function Documentation

void delphos::SchedulingInstance::AddConstraint ( delphos::Constraint * ctr )

Adds an additional constraint to the scheduling instance.

Parameters

ctr	The constraint to be added to the instance.

void delphos::SchedulingInstance::AddDestination ( const Destination & dest )

Adds an additional destination to the scheduling instance.

Parameters

dest	The destination to be added to the instance.

void delphos::SchedulingInstance::AddDestination	(	const string &	destname,
		const string &	destvalueattrname
	)

Adds an additional destination to the scheduling instance.

Parameters

destname	The destination name to be added to the instance.
destvalueattrname	The destination value attribute name.

void delphos::SchedulingInstance::AddStock ( const Stock & stock )

Adds an additional stock to the scheduling instance.

Parameters

stock The stock to be added to the instance.

void delphos::SchedulingInstance::AddStock	(	const string &	stock_name,
		const string &	tname,
		const double &	tonnage
	)

Adds an additional stock to the scheduling instance.

Parameters

stock_name	The name of the stock to be added to the instance.
tname	the tonnage attribute name of the stock to be added to the instance.
tonnage	Overall tonnage contained in the stock to be added to the instance.

SchedulingInstance * delphos::SchedulingInstance::AggregateTime	(	const unsigned int &	startperiod,
		const std::vector< int > &	period_unit
	)

returns a new time aggregated sheduling instance.

Parameters

startperiod	the start period of the aggregated instance.
period_unit	The period units of the aggregated instance. Geometric constraints not implemented.

const Constraint & delphos::SchedulingInstance::GetConstraint ( const unsigned int & index ) const

Returns the i-th constraint already in the model.

Parameters

index The i_th given position.

bool delphos::SchedulingInstance::RemoveConstraint ( const unsigned int & index )

Removes the ith constraint from the instance.

Parameters

index The index of the constaint to be removed from the instance.

void delphos::SchedulingInstance::SetFixedDiscountRate ( const double discount_rate )

(Re-)sets a discount rate that is fixed over the time-periods.

Parameters

discount_rate The discount rate.

void delphos::SchedulingInstance::SetUpdateFactor	(	const unsigned int	period,
		const double	factor
	)

Sets a specific update factor for a specific time-period.

Parameters

period	the time period (from 1 to Horizon()).
factor	The update factor. In the case of a fixed discount rate, the update factor is UPDATE_FACTOR = 1 / (1+discount_rate)^period.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/instance.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/instance.cpp
