delphos::RampPrecedence Class Reference

horizontal precedence class with utility methods. More...

#include <ramps.h>

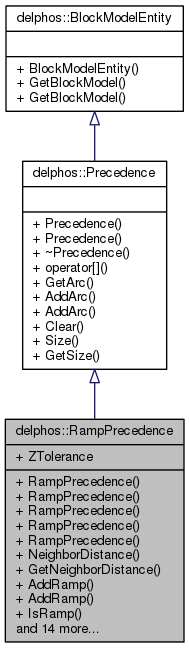

Inheritance diagram for delphos::RampPrecedence:

Collaboration diagram for delphos::RampPrecedence:

Public Member Functions
	RampPrecedence (delphos::BlockModel &bm, const double &neighbor_distance)
	Creates a new ramp precedence. More...
	RampPrecedence (delphos::BlockModel &bm, const double &neighbor_distance, const string &ramp_attr_name)
	Creates a new ramp precedence. More...
	RampPrecedence (delphos::BlockModel &bm, const double &neighbor_distance, const string &ramp_attr_name, const string &neighbor_attr_name)
	Creates a new ramp precedence. More...
	RampPrecedence (delphos::BlockModel &bm, const double &neighbor_distance, const vector< delphos::BlockIndexType > &ramps)
	Creates a new ramp precedence. More...
	RampPrecedence (delphos::BlockModel &bm, const double &neighbor_distance, const vector< delphos::BlockIndexType > &ramps, const string &neighbor_attr_name)
	Creates a new ramp precedence. More...
const double &	NeighborDistance () const
	Return the neighbor distance being used in the precedence. More...
const double &	GetNeighborDistance () const
	Return the neighbor distance being used in the precedence. More...
void	AddRamp (const delphos::BlockIndexType &block_id)
	Adds a new ramp to the precedence. More...
void	AddRamp (const double &x, const double &y, const double &z)
	adds a new ramp to the precedence. More...
bool	IsRamp (const delphos::BlockIndexType &block_id) const
	Determines if a given block is a ramp or not. More...
bool	IsRamp (const double &x, const double &y, const double &z) const
	Determins if a given block is a ramp or not. More...
void	RemoveRamp (const delphos::BlockIndexType &block_id)
	Removes an existing ramp. More...
void	RemoveRamp (const double &x, const double &y, const double &z)
	Removes an existing ramp. More...
void	CreateArcs ()
	Creates the arcs of the ramp precedence.
delphos::BlockSelection *	UnreachableBlocks ()
	Returns the blocks that cannot be accessed by this precedence. More...
delphos::BlockSelection *	GetUnreachableBlocks ()
	Returns the blocks that cannot be accessed by this precedence. More...
const string &	NeighborAttribute () const
	Returns the neighbor attribute being used in the precedence. More...
const string &	GetNeighborAttribute () const
	Returns the neighbor attribute being used in the precedence. More...
delphos::BlockIndexType	BlockRamp (const BlockIndexType &block_id) const
	Returns the ramp from which the block will be extracted. More...
delphos::BlockIndexType	GetBlockRamp (const BlockIndexType &block_id) const
	Returns the ramp from which the block will be extracted. More...
delphos::BlockSelection	Leaves (const BlockIndexType &block_id)
	Returns the leaves of a ramp. More...
delphos::BlockSelection	GetLeaves (const BlockIndexType &block_id)
	Returns the leaves of a ramp. More...
vector< delphos::BlockIndexType > *	GetAccesses () const
	Returns a pointer to the accesses container.
virtual	~RampPrecedence ()
	Destructor.
Public Member Functions inherited from delphos::Precedence
	Precedence (BlockModel &bm)
	Creates a new precedence with no arcs. More...
	Precedence (delphos::Precedence &other)
	Copy constructor.
virtual	~Precedence ()
	Destructor.
Arc	operator[] (const delphos::BlockIndexType &index) const
	Retrieves the Arc instance with given index. More...
Arc	GetArc (const delphos::BlockIndexType &index) const
	Retrieves the Arc instance with given index. More...
void	AddArc (const delphos::Arc &new_arc)
	Adds a new arc to the precedence. More...
void	AddArc (const delphos::BlockIndexType &first, const delphos::BlockIndexType &second)
	Adds a new arc to the precedence. More...
void	Clear ()
	Deletes all arcs. More...
const delphos::BlockIndexType	Size () const
	Returns the size (number of arcs) in the precedence. More...
const delphos::BlockIndexType	GetSize () const
	Returns the size (number of arcs) in the precedence. More...
Public Member Functions inherited from delphos::BlockModelEntity
	BlockModelEntity (delphos::BlockModel &bm)
	Creates a new block instance associated to a given block model. More...
delphos::BlockModel &	GetBlockModel ()
	Retrieves the block model to which the entity is associated. More...
const delphos::BlockModel &	GetBlockModel () const
	Retrieves the block model to which the entity is associated. More...

Static Public Attributes
static double	ZTolerance = 0.01
	The tolerance to determine if 2 blocks are neighbours.

Detailed Description

horizontal precedence class with utility methods.

Constructor & Destructor Documentation

delphos::RampPrecedence::RampPrecedence	(	delphos::BlockModel &	bm,
		const double &	neighbor_distance
	)

Creates a new ramp precedence.

Parameters

bm	The block model to which the precedence is associated.
neighbor_distance	Maximum distance to connect blocks.

This constructor creates a ramp precedence with no ramps, so they have to be added afterwards.

delphos::RampPrecedence::RampPrecedence	(	delphos::BlockModel &	bm,
		const double &	neighbor_distance,
		const string &	ramp_attr_name
	)

Creates a new ramp precedence.

Parameters

bm	The block model to which the precedence is associated.
neighbor_distance	Maximum distance to connect blocks.
ramp_attr_name	Name of attribute containing 1 for ramps and 0 for other blocks.

delphos::RampPrecedence::RampPrecedence	(	delphos::BlockModel &	bm,
		const double &	neighbor_distance,
		const string &	ramp_attr_name,
		const string &	neighbor_attr_name
	)

Creates a new ramp precedence.

Parameters

bm	The block model to which the precedence is associated.
neighbor_distance	The maximum distance to connect blocks.
ramp_attr_name	The name of attribute containing 1 for ramps and 0 for other blocks.
neighbor_attr_name	The name of attribute for which only blocks that have same value for it can be neighbors.

delphos::RampPrecedence::RampPrecedence	(	delphos::BlockModel &	bm,
		const double &	neighbor_distance,
		const vector< delphos::BlockIndexType > &	ramps
	)

Creates a new ramp precedence.

Parameters

bm	The block model to which the precedence is associated.
neighbor_distance	Maximum distance to connect blocks.
ramps	List of ramps to be added to the ramp precedence.

delphos::RampPrecedence::RampPrecedence	(	delphos::BlockModel &	bm,
		const double &	neighbor_distance,
		const vector< delphos::BlockIndexType > &	ramps,
		const string &	neighbor_attr_name
	)

Creates a new ramp precedence.

Parameters

bm	The block model to which the precedence is associated.
neighbor_distance	Maximum distance to connect blocks.
ramps	List of ramps to be added to the ramp precedence.
neighbor_attr_name.	Name of attribute for which only blocks that have same value for it can be neighbors.

Member Function Documentation

void delphos::RampPrecedence::AddRamp

(

const delphos::BlockIndexType &

block_id

)

Adds a new ramp to the precedence.

Parameters

block_id

id of the block to be added as ramp.

void delphos::RampPrecedence::AddRamp	(	const double &	x,
		const double &	y,
		const double &	z
	)

adds a new ramp to the precedence.

Parameters

x	X coordinate of the block to be added as ramp.
y	Y coordinate of the block to be added as ramp.
z	Z coordinate of the block to be added as ramp.

BlockIndexType delphos::RampPrecedence::BlockRamp

(

const BlockIndexType &

block_id

)

const

Returns the ramp from which the block will be extracted.

Parameters

block_id

id of the block. Deprecated.

BlockIndexType delphos::RampPrecedence::GetBlockRamp

(

const BlockIndexType &

block_id

)

const

Returns the ramp from which the block will be extracted.

Parameters

block_id

id of the block.

BlockSelection delphos::RampPrecedence::GetLeaves

(

const BlockIndexType &

block_id

)

Returns the leaves of a ramp.

Parameters

block_id

id of the ramp.

const string & delphos::RampPrecedence::GetNeighborAttribute

(

)

const

Returns the neighbor attribute being used in the precedence.

The neighbor attribute establishes which blocks will be connected in every bench in order to determine accessibility from the ramps.

const double & delphos::RampPrecedence::GetNeighborDistance

(

)

const

Return the neighbor distance being used in the precedence.

The neighbor distance establishes which blocks will be connected in every bench in order to determine accessibility from the ramps.

BlockSelection * delphos::RampPrecedence::GetUnreachableBlocks

(

)

Returns the blocks that cannot be accessed by this precedence.

Warning

This method allocates new memory that has to be released by the user.

bool delphos::RampPrecedence::IsRamp

(

const delphos::BlockIndexType &

block_id

)

const

Determines if a given block is a ramp or not.

Parameters

block_id

id of the block to be checked.

Returns

True if the block with given ID is a ramp, False if not.

bool delphos::RampPrecedence::IsRamp	(	const double &	x,
		const double &	y,
		const double &	z
	)		const

Determins if a given block is a ramp or not.

Parameters

x	X coordinate of the block being checked.
y	Y coordinate of the block being checked.
z	Z coordinate of the block being checked.

BlockSelection delphos::RampPrecedence::Leaves

(

const BlockIndexType &

block_id

)

Returns the leaves of a ramp.

Parameters

block_id

id of the ramp. Deprecated.

const string & delphos::RampPrecedence::NeighborAttribute

(

)

const

Returns the neighbor attribute being used in the precedence.

The neighbor attribute establishes which blocks will be connected in every bench in order to determine accessibility from the ramps. Deprecated.

const double & delphos::RampPrecedence::NeighborDistance

(

)

const

Return the neighbor distance being used in the precedence.

The neighbor distance establishes which blocks will be connected in every bench in order to determine accessibility from the ramps. Deprecated.

void delphos::RampPrecedence::RemoveRamp

(

const delphos::BlockIndexType &

block_id

)

Removes an existing ramp.

Parameters

block_id

id of the block to be removed as ramp.

void delphos::RampPrecedence::RemoveRamp	(	const double &	x,
		const double &	y,
		const double &	z
	)

Removes an existing ramp.

Parameters

x	X coordinate of the ramp being removed.
y	Y coordinate of the ramp being removed.
z	Z coordinate of the ramp being removed.

BlockSelection * delphos::RampPrecedence::UnreachableBlocks

(

)

Returns the blocks that cannot be accessed by this precedence.

Warning

This method allocates new memory that has to be released by the user. Deprecated.

---

The documentation for this class was generated from the following files:

• /home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/ramps.h
• /home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/ramps.cpp
