A precedence constraint. More...

#include <constraint.h>

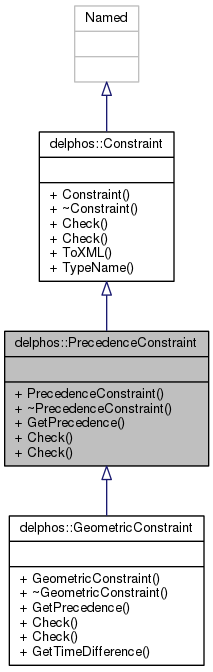

Inheritance diagram for delphos::PrecedenceConstraint:

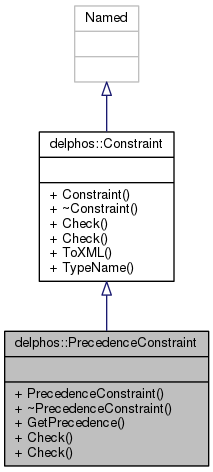

Collaboration diagram for delphos::PrecedenceConstraint:

Public Member Functions
	PrecedenceConstraint (const string &name, const delphos::Precedence &prec)
	Creates a new precedence constraint. More...

virtual	~PrecedenceConstraint ()
	Destroys the precedence constraint.

virtual const delphos::Precedence &	GetPrecedence () const
	Returns the precedence object associated to the constraint. More...

virtual bool	Check (const delphos::Schedule &sch) const
	Checks if the constraint is satisfied. More...

virtual bool	Check (const delphos::FractionalSchedule &sch) const
	Checks if the given fractional schedule satisfies the constraint. More...

Public Member Functions inherited from delphos::Constraint
	Constraint (const string &name)
	Creates a constraint with given name. More...

virtual	~Constraint ()
	Destructor. More...

virtual string	ToXML (const unsigned int identation_level=0) const
	A XML string describing the constraint. More...

const char *	TypeName () const
	a char string used a identifier in the XML representation of the constraint.

Detailed Description

A precedence constraint.

The precedence constraint force blocks to be scheduled satisfying a certain partial order.

Constructor & Destructor Documentation

delphos::PrecedenceConstraint::PrecedenceConstraint	(	const string &	name,
		const delphos::Precedence &	prec
	)

Creates a new precedence constraint.

Parameters

name	The name of the precedence constraint.
prec	The precedence.

This method creates a new precedence constraint, which is given by a precedence object (already computed) and has a name within the instance.

bool delphos::PrecedenceConstraint::Check ( const delphos::Schedule & sch ) const

virtual

Checks if the constraint is satisfied.

Parameters

sch	The schedule to be checked.

Returns true only if the constraint is satisfied.

Reimplemented from delphos::Constraint.

bool delphos::PrecedenceConstraint::Check ( const delphos::FractionalSchedule & sch ) const

virtual

Checks if the given fractional schedule satisfies the constraint.

Parameters

fsch	The fractional schedule to be checked.

This method checks if the given schedule satisfies the constraint (returning true) or not (return false).

Reimplemented from delphos::Constraint.

const Precedence & delphos::PrecedenceConstraint::GetPrecedence ( ) const

virtual

Returns the precedence object associated to the constraint.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.cpp
